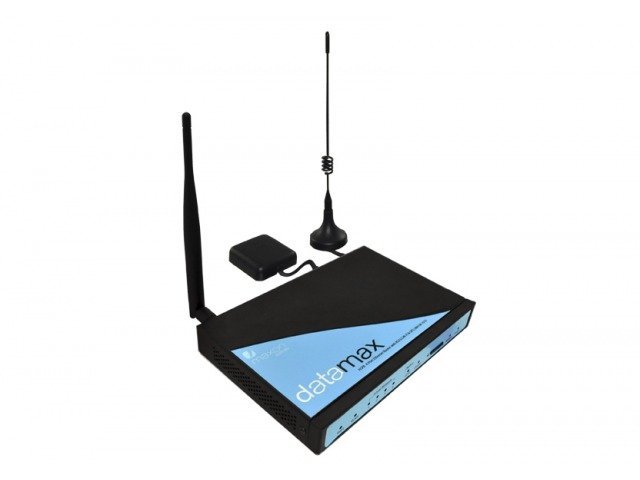

Encased in a robust metal casing, this powerful 3G router has diverse connectivity options including RS232, Wi-Fi & GPS to manage your M2M applications over high data speeds.
Its Wi-Fi connectivity gives this router local wireless capabilities creating an effective industrial hotspot.
Failover between 3G, and fixed-wire WAN or Wi-Fi, makes configuring redundant links easy.
Advance these benefits further, with tracking available via its GPS feature, for an all-rounded & intelligent M2M router.
Datamax MA100-1010 Features
- QuadBand HSPA
- Quad Band GSM/GPRS/EDGE
- Inbuilt GPS Receiver
- Inbuilt Wi-Fi Transceiver
- 4 Port Ethernet Connectivity
- 21 Mbps Downlink, 5.76 Mbps Uplink
Applications:
Marine, Transport, Industrial, Climate & Measurement
Frequency Bands
•WCDMA/HSDPA 850MHz, 900MHz, 1900MHz, 2100MHz
•GSM/GPRS/EDGE 850MHz, 900MHz, 1800MHz and 1900MHz
Environmental Specifications
Normal Operation Temperature -35 to 75°C
StorageTemperature -40 to 85°C
Humidity: 5%~ 95%
General Features
HSPA/EDGE/GPRS/GSM
Rugged and Robust form factor
Incorporates GPS functionality
Inbuilt Wi-Fi Transceiver
4 x Ethernet Ports
Web-based management
Supports VPN client mode
Supports UPN Pass
Supports DHCP server/client
Supports RS232/RS485/RS422
Wide ranging input voltage
Supports DDNS
Supports TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, TELNET, FTP, SNMP etc
Auto recovery including online/offline detect & auto redial
Supports Firmware over the Air (FOTA) functionality
Connections
Power–barrel connector (2.5mm)
4 x Ethernet Connection RJ45
1 x RS232 (or RS485/RS422) connector (RJ45)
1 x SIM Cards
1 x WAN Connection RJ45
GPS Antennaconnector: SMA Female
Wi-Fi Antenna connector – SMA Male
Antenna connector: SMA Female
GPS
GPS Module
50 channel receiver
GPSL1 (1575.42Mhz) C/A code
SBAS: WAAS, EGNOS, MSAS, GAGAN
Supports Galileo
Max update rate 4Hz
Accuracy 2.5m CPE for position
Accuracy 2.0m CPE for SBAS
Acquisition: 29s cold start, 29s warm start,
Sensitivity: Tracking -160dBm, Reacquisition -160dBm, Cold starts -144dBm
Timepulse: Configurable, 0.25 to 1KHz.
Mounting
Side mounting brackets
LED
Power
Online
GPS
System
Local network
WAN
WLAN
Power
5~35VDC (reverse polarity protection)
Mainimum Current: 450mA @ 12VDC
Maximum Current: 660mA @ 12VDC
Data
HSPA: 5.76 Mbps UL, DL 7.2 Mbps
WCDMAPS: UL 384kbps / DL384kbps
Dimensions
206 mm x 135 mm x 28 mm (without side brackets and antenna)
In the box:
1 x Router
1x Console cable (RJ45 to DB9 Female)
1x Ethernet cable (RJ45 to RJ45)
1x GPS Magnetic Base Antenna (1575.42MHz) (SMA Male) (3m cable)
1x Magnetic Base 3.0dBi 3G cellular Antenna (SMA Male) (1m cable) (Height: 23.2cm)
1x DC Power Cable (1.5m) with 2.5mm barrel connector and in-line fuse
1x Wi-Fi antenna (SMA Female with adjustable elbow) (Height: 19.5cm)
1x Side Mounting Bracket x 2 c/w Screws x 4
