Thrill to the Power of Nine-Channel Entertainment

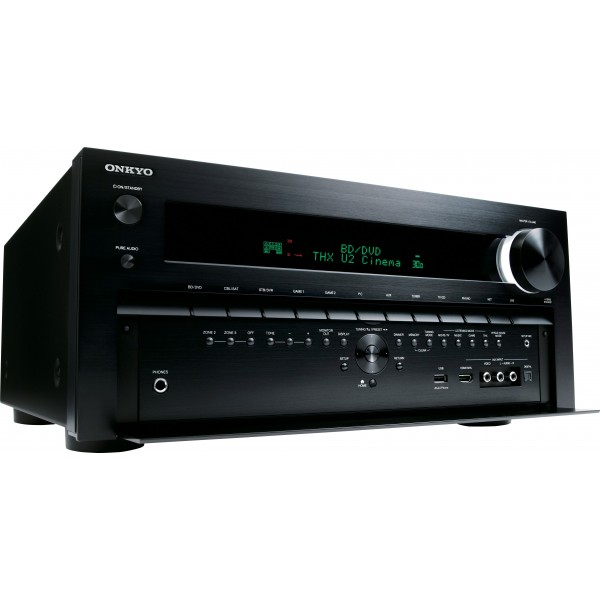

The ultimate hub for house-wide entertainment, the TX-NR3010 can drive audio in three rooms, output high-resolution video on two displays, and stream audio via DLNA—all controlled by your iPhone or Android-powered phone. With a total of 11 HDMI® ports (including MHL™ for smart phone) and 11.4-channel pre-outs, the home theater setup possibilities are limited only by your imagination. The receiver boasts Audyssey MultEQ® XT32 room correction and three incredible sound expansion systems—DTS Neo:X™, Audyssey DSX®, and Dolby® Pro Logic® IIz—while a combination of Qdeo™, HQV®, and ISF technology upscales and calibrates video sources to 4K resolution. As an audiophile-spec component, the TX-NR3010 features a massive main transformer, additional transformers for audio and video processing, and separated pre-amp and power amp blocks. Audio signals are jitter-cleaned and converted to analog by 192 kHz/24-bit DACs and VLSC™ circuits before passing through the Three-Stage Inverted Darlington Circuitry. The resulting sound quality is awe-inspiring—and with differential DAC mode and digital crossover processing, bi-amping your front monitors results in even higher performance. Easily set up and controlled using the HDMI-enabled user interface, this THX® Ultra2 Plus™-certified receiver is waiting to reignite your passion for music and cinema.
Three High-Performance Sound Expansion Systems
A nine-channel system provides the ultimate entertainment experience, with additional High and Wide channels convincing you with realistic directional and ambient effects. Audyssey DSX®, Dolby® Pro Logic® IIz, and DTS Neo:X™ expansion systems offer you freedom to choose your preferred speaker setup. Audyssey DSX can expand 5.1-channel sources to incorporate Wide and Height channels. The Dolby system adds Height channels and stereo source expansion, while DTS Neo:X offers Wides and Heights with cinema, music, or game listening modes.
House-wide Audio and Video Entertainment
Now there’s a way to share your hi-def content on a second TV—say, a wall-mounted flatscreen in the kitchen or bedroom—without having to buy and connect another Blu-ray player or set-top box. Connect your additional display using the receiver’s Zone 2 HDMI output to enjoy the same program, or two different HD sources, in both rooms. Naturally, this receiver also powers audio in two other zones by assigning Front Wide or Front High channel outputs. Playback of audio and video is easily controlled with the main system remote or Onkyo remote control app.
Innovative Design and Quality Construction
This receiver is built to deliver superb sound quality.
Processing equipment and amplifier circuits are housed separately to limit electrical interference, while PLL (Phase Locked Loop) jitter cleaning preserves signal integrity by eliminating digital clock noise. The amplifier’s Three-Stage Inverted Darlington Circuitry—an enhancement to the core WRAT (Wide Range Amplifier Technology) concept—and VLSC™ system ensures minimal distortion. Quality circuitry dovetails with a heavy-duty power supply and multiple transformers for instantaneous response to signal gains. The resulting sound is reliably pure, even under heavy loads.
ADVANCED FEATURES
THX® Ultra2 Plus™ Certified
Multi-Transformer for Audio, Video, and Digital Processing
VLSC™ (Vector Linear Shaping Circuitry)
High-Quality HQV® Vida™ VHD1900 Video Processor
HDMI® Video Upscaling to 4K with Qdeo™ Technology by Marvell
ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
DTS Neo:X™, Audyssey DSX®, and Dolby® Pro Logic® IIz for Expanded Surround Channels
MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
Input Source Preview with InstaPrevue™ Technology
Audyssey MultEQ® XT32 for Room Acoustic Correction
Internet Radio and Cloud Music Streaming Service Connectivity (MP3tunes, Spotify, AUPEO!, vTuner)*1
Supports Onkyo Remote Apps for iPod touch/iPhone*2 and Android Phone*3
Zone 2 HDMI Output for HD Video in a Second Room
11.4 Multichannel Pre-Outs
Digital Crossover Processing Network to Cancel Crossover Interference
Machined Solid Brass, 19 mm-Pitch Audio Inputs (TV/CD and Phono)
*1 Availability of services depends on region. Some services may require a firmware update. Availability of third-party services advertised here is accurate at the time of writing, but may be subject to change without notice.
*2 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
*3 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
Isolated Power-Amp and Pre-Amp Block
WRAT (Wide Range Amplifier Technology)
Three-Stage Inverted Darlington Circuitry
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Discrete Output Stage Circuitry
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
Bi-Amping Capability
PROCESSING FEATURES
HDMI Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
7 x TI Burr-Brown 192 kHz/24-Bit DACs
Differential DAC Mode to Double Processing Power for up to 5.1 Channels
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Advanced Music Optimizer for Compressed Digital Music Files
CONNECTION FEATURES
9 HDMI Inputs (1 Front/8 Rear) and 2 Outputs
2 USB Ports (1 Front/1 Rear)
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Compatible with Optional UWF-1 Wireless LAN Adapter and UBT-1 Bluetooth USB Adapter
Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD, LPCM)
2 Component Video Inputs and 1 Output
5 Composite Video Inputs and 1 Output
6 Digital Audio Inputs (3 Optical and 3 Coaxial)
7 Analog Audio Inputs and 1 Phono Input
Powered Zone 2/3 and Zone 2/3 Line-Outs for Distributed Audio Playback in Multiple Rooms
Zone 2 Video Output (Composite)
Analog RGB Video Input (D-sub, 15 pin) for PC
RS-232 Port, IR Input/Output, and 12 V Trigger Outs (Zone 2/3)
OTHER FEATURES
Audyssey Dynamic EQ® and Audyssey Dynamic Volume®
Dolby® Volume for Reference-Quality Listening at Any Volume
Overlaid On-Screen Display (OSD) with Quick Set-Up and Home Menu
Hybrid Standby to Reduce Power Consumption
Independent Crossover Adjustment for Each Channel (40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 150 / 200 Hz)
A/V Sync Control (Up to 800 ms at 48 kHz)
Tone Control (Bass/Treble) for All Channels (except Zone 2/3)
Bi-Directional, Preprogrammed, and Customizable RI Remote Control with Macro Presets for Four Activities
GENERAL SPECIFICATIONS
Power Output: 200 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC);
250 W/Ch (6 Ohms, 1 kHz, 1 Channel Driven, JEITA)
Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Dimensions (W x H x D): 435 x 198.5 x 463.5 mm
Weight: 25.0 kg
