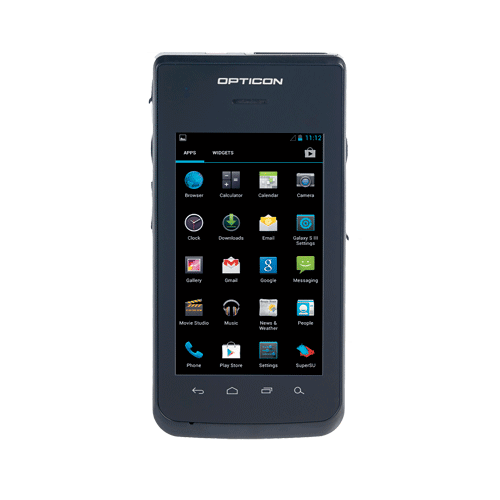

Opticon H27 Android Mobile Enterprise Assistant
Main Features :
Android Portable Personal Assistant Data Terminal
Barcode Laser Scanner or 2D Imager
Can withstand multiple drops to concrete from 1.5 m
IP-65 Rating
4.3″ Colour LCD with Capacitive Touch screen, Gorilla glass V2 and Anti reflective coating
Android 4.2.2 Operating System
WWAN Data GPRS/EDGE, UMTS, HPSA+
GPS: Integrated GLOnASS
Wifi IEEE 802.11a/b/g/n
Bluetooth Ver. 4.0
Colour Camera 5 Megapixels, Autofocus, Flash LED
Accelerometer, Magnetometer, Gyroscope, Photometer and Proximity Sensors
Description
OPH27-1D
Opticon H27 Portable Data Terminal with Laser Scanner, standard Battery, USB AC Adapter, Micro USB Cable, Ear Microphone & Stylus with spring cord.
OPH27-2D
Opticon H27 Portable Data Terminal with 2D Imager Scanner, standard Battery, USB AC Adapter, USB Cable, Leather Case, Hand Strap, Ear Microphone & Stylus with spring cord.
Order Code
Description
Cradle
OPCRD27
USB/Serial Communication/Charging Cradle
Battery
OPH27STBATT
Standard Capacity Battery 3.7V 2860mA
Processor
Qualcomm MSM 8960 Dual core Krait 1.5GHz
Operating System
Android 4.2.2
Sensors
Accelerometer, Magnetometer, Gyroscope, Photometer and Proximity
Flash Memory
8GB eMMC
RAM Memory
1GB DDR2 SDRAM
Expansion
User accessible microSD + HC (up to 32GB)
Scan engine
Laser scanner
Light Source
650nM visible Laser Diode
Scan rate
100 scans/sec
Reading Pitch Angle
-35° to 0° to +35°
Reading Skew Angle
-50° to -8°, +8° to +50°
Reading Tilt Angle
-20° to 0°, 0° to +20°
Minimum Resolution
PCS 0.45
Depth of Field
At PCS 0.9 Code 39
39 mil (1.00mm) 70 – 650 mm
20 mil (0.5mm) 50 – 420 mm
10 mil (0.25mm) 50 – 260 mm
6 mil (0.15mm) 50 – 150 mm
5 mil (0.127mm) 60 – 120 mm
Symbologies support
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
2D code: Composite Codes, MicroPDF417, PDF417
Scan engine
2D Imager Scanner
Light Source
Aiming Green LED, illumination LED’s
Scan method
CMOS Area Sensor 752 x 480 pixels, gray scale
Image format
Bitmap, JPEG, Tiff
Scan rate
up to 60 fps
Reading Pitch Angle
-50° to 0° to +50°
Reading Skew Angle
-50° to 0° to +50°
Reading Tilt Angle
360°
Minimum Resolution
PCS 0.9
7 mil (0.169 mm) at PDF
8 mil (0.212 mm) at QR Code & Datamatrix
Depth of Field
Code 39
5 mil (0.127mm) 85 – 125 mm
10 mil (0.254mm) 65 – 205 mm
20 mil (0.508mm) 60 – 295 mm
QR Code
8.4 mil (0.212mm) 90 – 115 mm
15 mil (0.381mm) 55 – 195 mm
Symbologies support
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
2D code: Composite Codes, MicroPDF417, PDF417 Aztec Code, Aztec Runes, Codablock F, Datamatrix (ECC200/ECO-140), Maxicode (mode 2~5), Micro QR Code, QR Code
Keyboard
1 Power Key, 2 Volume Keys, 2 Scan Keys, 4 Android Navigation Keys
Display
TFT LCD (350 nits) with Capacitive touch panel
Size: 4.3″, 800 x 480 pixels
Gorilla glass v2
Coating: Anti reflective
Camera
Rear facing Colour 5 Megapixels, auto-focus, LED Flash
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 2860mAh
Lithium-ion rechargeable
Hot swappable (Backup Battery 3.7V, 806 mAh)
Operating time: 8 Hours (LCD on, 3G on), standby time 325 Hours
Battery Charging time: 2-2.5 Hours
Charging technology: Qualcomm Quickcharge 1.0
Operating Temperature
-10°C to 50 °C
Storage Temperature
-20°C to 70 °C (without Battery)
Humidity
5 to 95% relative humidity, non-condensing
Mechanical Shock
Functional after 1.5 m drop onto concrete
Sealing
IP-65 rating
H x W x D
147 x 77 x 19 mm
Weight
244 g (including batteries)
Regulatory & Safety
Product compliance: CE, FCC, VCCI, PTCRB, GCF, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
