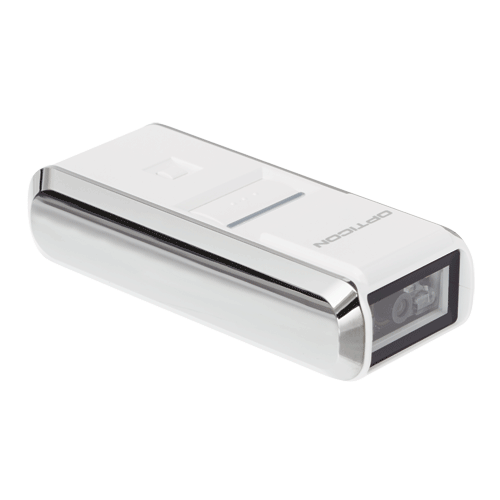

Opticon OPN3002i Pocket Bluetooth Scanner
The OPN3002i is especially designed for use in combination with Apple Devices (such as iPod, iPhone and iPad). By supporting Apple MFi a faster data transfer is realized. It’s supplied as a ready to go functional kit including a USB cable and lanyard.
With its unique ergonomic design and weighing only 60 grams the OPN-3002i is perfectly suited to being worn around the user’s neck with the lanyard supplied. The OPN-3002i has a drop resistance to 1.5 meters (no need for a special protection cover).
Specification :
| Memory | |
| FlashROM | 1 MB |
| RAM | 96 kB |
| Operation | |
| CPU | 32-bit CISC, 96 MHz |
| O/S | Proprietary |
| RTC | Supports year, month, day, hour, minute, second (leap year supported) |
| Operating indicators | |
| Visual | 1 LED (red/green/blue) |
| Non-visual | Buzzer |
| Operating keys | |
| Entry options | 2 keys total, 1 function key, 1 scan key |
| Communication | |
| USB | Mini USB |
| Bluetooth | Ver. 2.1, SPP, HID, 1 to 1 connection, master / slave mode, authentication and encryption |
| Power | |
| Operating time | 10 hours (2 scan / 10 sec incl Bluetooth communication) |
| Charging method | Enclosed USB cable |
| 2D Imager Optics | |
| 2D Light source | Green aiming LED, 2 illumination red LEDs |
| 2D Scan method | CMOS area sensor, 752 x 480 pixels |
| 2D Scan rate | Up to 60 fps |
| 2D Reading pitch angle | -50 to 0º, 0 to 50º |
| 2D Reading skew angle | -50 to 0º, 0 to 50º |
| 2D Reading tilt angle | 360º |
| 2D Curvature | R>20 mm (12 digits) R>16 mm (10 digits) |
| 2D Min. Resolution at PCS 0.9 | 0.127 mm / 5 mil |
| 2D Min. PCS value | 0.30 |
| 2D Field of view | Horizontal 40.6º, Vertical 26.4º |
| 2D Depth of field | At QR Code 90 – 110 mm / 3.54 – 4.33 in (0.212 mm / 8.4 mil), 55 – 180 mm / 2.17 – 7.09 in (0.381 mm / 15 mil) * The depth of field depends on the view angle and symbol length |
| Supported Symbologies | |
| Barcode (1D) | UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on, JAN-8, JAN-13, Code 39, Tri-Optic, Codabar (NW-7), Industrial, 2 of 5, Interleaved 2 of 5, S-Code, IATA, Code 93, Code 128, MSI/Plessey, UK/Plessey, TELEPEN, Matrix 2of5, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC |
| Postal code | Chinese Post, Korean Postal Authority code |
| 2D code | PDF417, MicroPDF417, Codablock F, QR Code , Micro QR Code, DataMatrix (ECC 0 – 140 / ECC 200), MaxiCode (Modes 2 to 5), Aztec Code, Chinese Sensible Code |
| Durability | |
| Temperature in operation | 0 to 50 ºC / 32 to 122 ºF |
| Temperature in storage | -20 to 60 ºC / -4 to 140 ºF |
| Humidity in operation | 20 – 85% (non-condensing) |
| Humidity in storage | 20 – 85% (non-condensing) |
| Ambient light immunity | Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
| Drop test | 1.5 m / 5 ft drop onto concrete surface |
| Physical | |
| Dimensions (w x h x d) | 36 x 83 x 21.5 mm / 1.42 x 3.27 x 0.85 in |
| Weight body | Ca. 57 g / 2 oz (incl. battery) |
| Case | ABS, White |
| Regulatory & Safety | |
| Product compliance | CE, FCC, VCCI, MFi, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024 |
