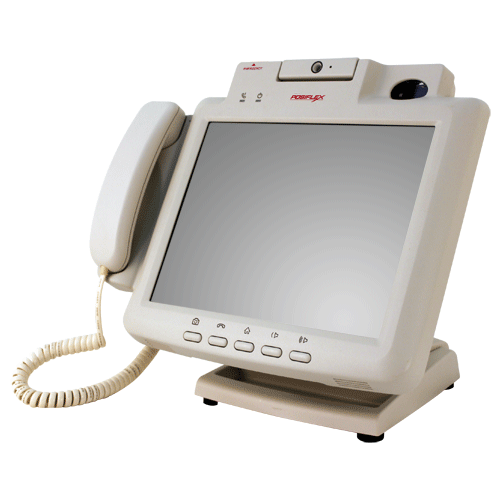

Touch System designed for aged Care
Handset for VOIP Communications
Web Camera to keep in touch with loved ones
Easy access function keys
Emergency Key
Fan-free design boasting quiet and anti-dust features
Patented aluminium die-cast housing design for efficient cooling
10″ LCD Display with 5-wire Resistive Touch Screen
Equipped with Intel Pine View Dual Core D525 1.8 GHz CPU and DDR3 memory
32 GB or higher SSD
1Gb RAM expandable to 4Gb
Powered Serial ports
Optional CF Slot
Bracket | PFWB6812 | Wall mount Bracket |
CPU | Intel Pine View Dual Core D525 1.8 GHz / 1M Cache CPU |
Memory | DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 1GB |
Storage | We stock Standard 32G SSD Also available with higher spec SSD or 3.5 inch 250GB Hard Disk Drive CF Card Slot Type 1 Memory card |
LCD | 10″ Active Matrix LCD Display |
Brightness | 250 nits |
Resolution | 1024 x 768 |
Touch Panel | 5-wire Resistive, USB Interface |
Connectivity | 3 RS-232 Ports (2 x DB9, 1 x RJ45) |
4 USB Ports | |
VGA Port for 2nd Display optional | |
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) | |
10/100/1000Mb Ethernet Port | |
Line out Audio Port | |
Power on wake up | Through Alarm, LAN or Modem |
Sound | 2W Speaker x 2 in the main unit, MIC in / Line out |
Size (W x D x H) | 310mm x 206mm x 269mm |
Weight | 3.12 Kg |
