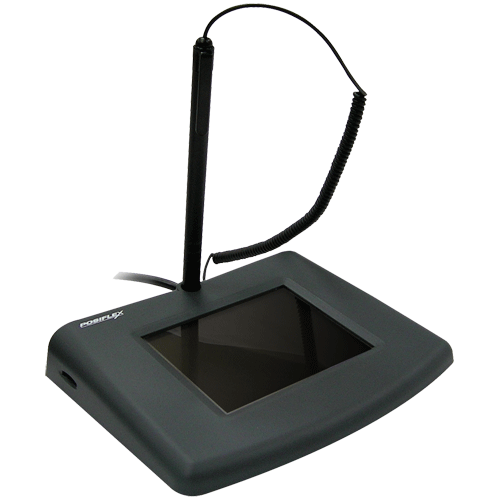

Signature Capture Pad
ITO resistive touch pad over 3.8″ FSTN LCD
Display area 3″ (Width) x 2.3″ (Height) with resolution 320 x 240
Adjustable LCD backlight contrast
Touch Resolution 500dpi and Data Conversion Rate 540 pps
Low power consumption
Provides smooth bitmap and resolution for signature verification
Simultaneous view of electronic signature on LCD pad
?
Stylus | PF38116001013 | Stylus with Tether |
Display | 3.8″ FSTN LCD Panel with Backlight |
Resolution | 320 x 240 |
Touch Panel | ITO resistive transparent touch pad |
Touch Resolution | 500 Dpi |
Interface | USB 1.1 |
OS Support | Windows 98SE, 2000, XP |
SDK Support | VB & Visual C++ |
Output Format | BMP |
Power Source | 5 VDC from USB Port |
Max. Current | 70 mA |
Operating Temperature | 0 ~ 45 ºC |
Storage Temperature | -20 ~ 60 ºC |
Relative Humidity | 5% ~ 85% non condensing |
Dimensions W x D x H | 150 x 122 x 26 mm |
Weight | 370 g (cable not included) |
EMC/Safety Standards | FCC Class A, CE, C-tick |
