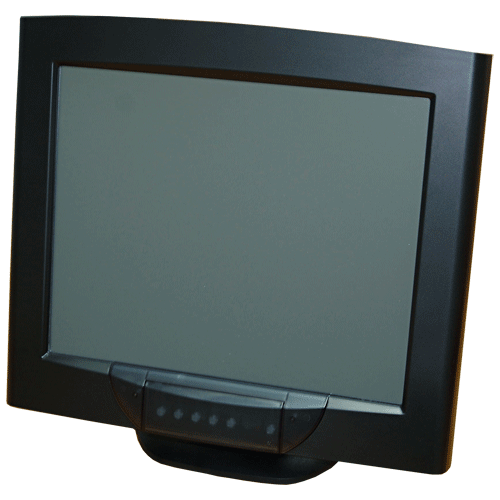

17″ Inch TFT LCD POS Monitor
High Brightness
ELO 5 Wire Resistive Touch Panel
RS232 Touch Interface
250 Nits (cd/m²
Very stable base, excellent for POS applications
?
MSR | ITM123MSR | MSR for ITM-Series with RSR232 Interface |
Viewing Area | 17″ TFT LCD |
Resolution | 1280 x 1024 |
Contrast Ratio | 400:1 |
Brightness | 250 cd/m² |
Display Colours | 16.7 million |
View Angle | 160º (H) / 135º (V) |
VGA Signal | Analog RGB |
Controls | Brightness, Contrast, H-Phase, V-Phase, size |
Touch Panel | ELO Accutouch 5-wire resistive touch screen |
Touch Interface | RS232 |
Power Supply | External Power Adapter AC 100~240V, 50/60Hz, 2.5A |
Consumption (Max) | 25 W |
Operating Temperature | 0 ~ 40 ºC |
Operating Humidity | 10 ~ 90% |
External Dimensions (W x D x H) | 432 x 406 x 250 mm |
EMC/Safety Standards | CE, FCCB, TUV/GS, ETL.ETLC |
