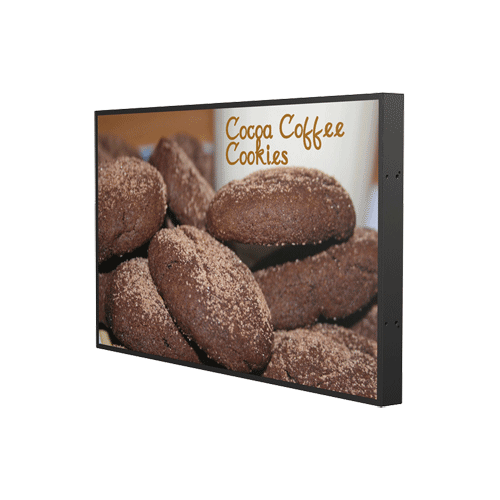

42″ Wide LED LCD Monitor
Metal Cabinet
Extra Wide Viewing angle
Narrow Bezel
Fanless
Thermal Alarm & Protection
RS232 remote control API utility support
High Brightness
Industrial grade
HDMI & VGA input
Optional IR Touch
Viewing Area | 42″ Active Matrix TFT LCD |
Resolution | 1920 x 1080 Pixel pitch 0.4845 x 0.4845 |
Contrast Ratio | 4000:1 |
Brightness | HE & IR 500 cd/m² SH 700 cd/m² |
Display Colours | Colour/grey scale: 1073M/10bits |
Response Time | 8 ms |
View Angle L/R | 178º / 178º |
View Angle U/D | 178º / 178º |
Signal Connector | 2 x HDMI 2 x VGA RS232: in x1/out x 1 |
Audio | Speaker 5W |
Audio Connector | Input: x 2 Output: x 1 |
Touch Panel (option) | Infra Red Touch Screen |
Touch Interface | RS232 |
Power Supply | AC 100~240V, 50/60Hz |
Consumption (Max) | 110 W (Max.) at stand-by Max. 1.5 w |
Operating Temperature | 0 ~ 40 ºC |
Operating Humidity | 10 ~ 80% |
External Dimensions (W x D x H) | 962 x 52 x 555 mm (without Wall Bracket) bezel width: 11.8 mm |
Weight | 16.7 Kg |
EMC/Safety Standards | CE (EMC/LVD), FCC, UL, CUL, CB, CCC, C-Tick |
