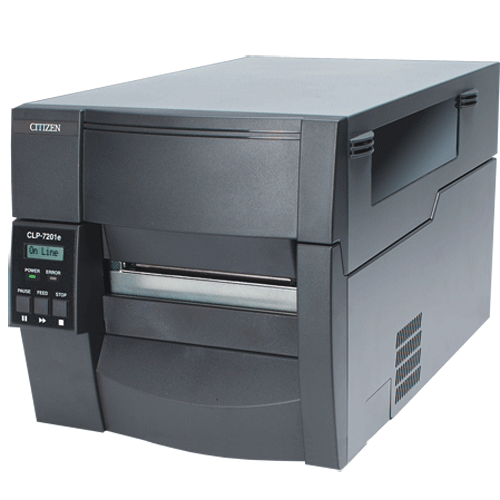

Replacement: CLS-701
Thermal Transfer & Direct Thermal Technology
Build in power supply
High speed printing up to 7 inches/sec
High speed main processor
Heavy duty Metal Clam Shell Printer
Easy Label Loading
Active Ribbon Control & Positioning
Easy Printing operations
Equipped with Parallel, RS232 & USB Interfaces
Tear off mode
Standard Moveable Media Sensor
Options
Auto cutter
Peeler (Factory fitted)
Flash Memory card
Ethernet Interface
WiFi Interface
Label Paper | LABxxxxx | Please call for variety of sizes and colours |
Thermal Transfer Ribbons |
| Please call for variety of sizes and types, Wax, Wax/Resin or Resin |
Printing Method | Thermal Transfer or Direct Thermal printing | |
Printing Speed (Max.) | up to 7 inches/sec | |
Print Density | Adjustable with software | |
Fonts | 1 Scalable, 8 Bitmap, OCR-A & B | |
True type Download | Supported Standard | |
Control Language | CITIZEN CLP Command Language | |
Media Type | Roll or Fanfold; Continues or Perforated; die cut labels; Tags & Tickets | |
Media Sensing | Label Gap, notch or reflective | |
Resolution/Dot pitch | 203 dpi, 8 dots/mm | |
Media width (Min-Max) | 25.4 – 118 mm | 1 – 4.65 inches |
Label width (Min-Max) | 7.62 – 118 mm | 0.3 – 4.65 inches |
Media Roll Size (Max) | 203 mm, 8 inches (Internal); Media core 38 – 76 mm, 1.5-3 inches | |
Media Thickness (Min-Max) | 0.0635 – 0.254 mm | 0.0025 – 0.01 inches |
Printing width (Max) | 104 mm | 4.1 inches |
Printing length (Max) | 812 mm | 32 inches |
Label length (Min) | 2.54 mm | 0.1 inches |
Bar-code Symbologies | Code39, Code93, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5, Code128 with subsets A/B/C and UCC Case Codes, Telepen, FIM & HIBC. 2D Codes: PDF-417 & Maxi Code | |
Standard Interface | Parallel | IEEE1284 (Compatible, Nibble, ECP Mode) |
Serial | RS232C, Baudrate from 2400-115200 | |
USB | Full Speed USB1.1 | |
Optional Interfaces | Ethernet Lan | |
WiFi, Wireless LAN | ||
Memory | DRAM | 2 Mb |
Flash Memory | 1 Mb | |
Optional | Flash Memory Card | 4Mb |
Weight | 12.5 Kg | |
External Dimensions (W x D x H) | 260 x 452 x 256 mm | |
Operating temp. range | 5 to 35 ºC, Humidity 30 to 80% | |
Storage temp. range | -20 to 60 ºC, Humidity 5 to 85% | |
Standards | EN60950, EN55022 (Class A), EN55024, EN61000-3-2, EN61000-3-3 | |
Power | 220-240V (-10~+6%), 1.2A, 50/60Hz | |
