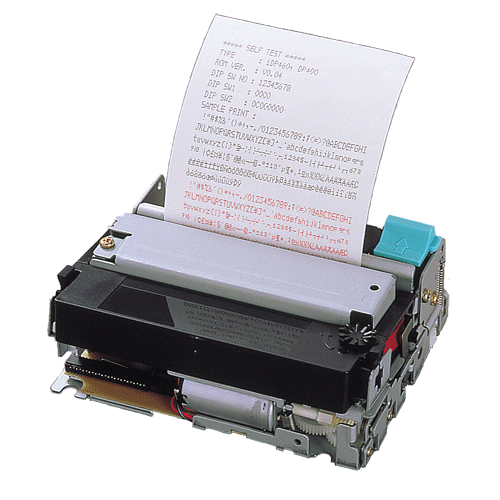

Citizen DP-420/430 Dot Matrix Printer Mechanism in New Zealand
Order Citizen DP-420/430 Dot Matrix Printer Mechanism from ACP Online New Zealand. It forms part of our carefully organised OEM Printer Mechanism catalogue for retail, office, security and technology environments.
Product information
Dot Matrix Printing
Compact Design
Bi-directional printing
2 Colour Printing
High Reliability
76 mm Paper width
24V operation
Number of Pins
DP420: 7 Pins
DP430: 9 Pins
??
Ribbon
IR41BR
Black & Red Ribbon
IR41B
Black Ribbon
Paper
P7676
Plain Paper rolls 76 x 76 mm
C7676
2 Ply Paper rolls 76 x 76 mm
Auto Cutter
ACS-234
Auto cutter for the DP-4xx
Paper Winder
AW2FA
Rewind Device
Printing Method
Serial Dot Matrix Impact
Printing Direction
Bi-directional
Number of Columns
42 columns
Printing Speed (Max.)
approx. 3.0 lines/sec.
Paper Feeding Speed (Max.)
approx. 28 lines/sec.
Total No. of Wires
7 Pins
9 Pins
Character Size
1.31 × 2.4 mm
1.31 × 3.1 mm
Font
7 X 7 Matrix
7 X 9 Matrix
Character Pitch
1.52 mm
Line spacing
4.23 or 2.82 mm, Minimum 1.41 mm
Paper feed method
Friction or Sprocket feed
Paper Type
Plain Paper, Single or 2 Ply
Paper Width
76 +/- 0.5 mm x Ø83 mm
Motor
24 V DC +/-5%, Current: Peak approx. 1.0A, average 0.2A
Reset Pulse Sensor
Photo interrupter
Dot Pulse Sensor
Photo interrupter
Home Position sensor
Photo interrupter
Paper end sensor
Photo interrupter
Black Mark sensor (optional)
Photo interrupter
Connection Method
FFC or FPC Cable
External Dimensions (W x D x H)
120 × 90 × 45 mm
Weight
470 g
Operating Temperature
0 ~ 50 °C
Storage Temperature
-20 ~ 70 °C
Reliability
Mechanism (MCBF)
2.5 million lines
Head
80 million Characters
Product details
- Brand: Citizen
- SKU / model reference: DP-420/430
- Product category: POS › OEM Printer Mechanism
- Catalogue status: Send enquiry to confirm stock and current pricing.
Before ordering
Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
