D-Tech DHI-NVR616-128-4KS2

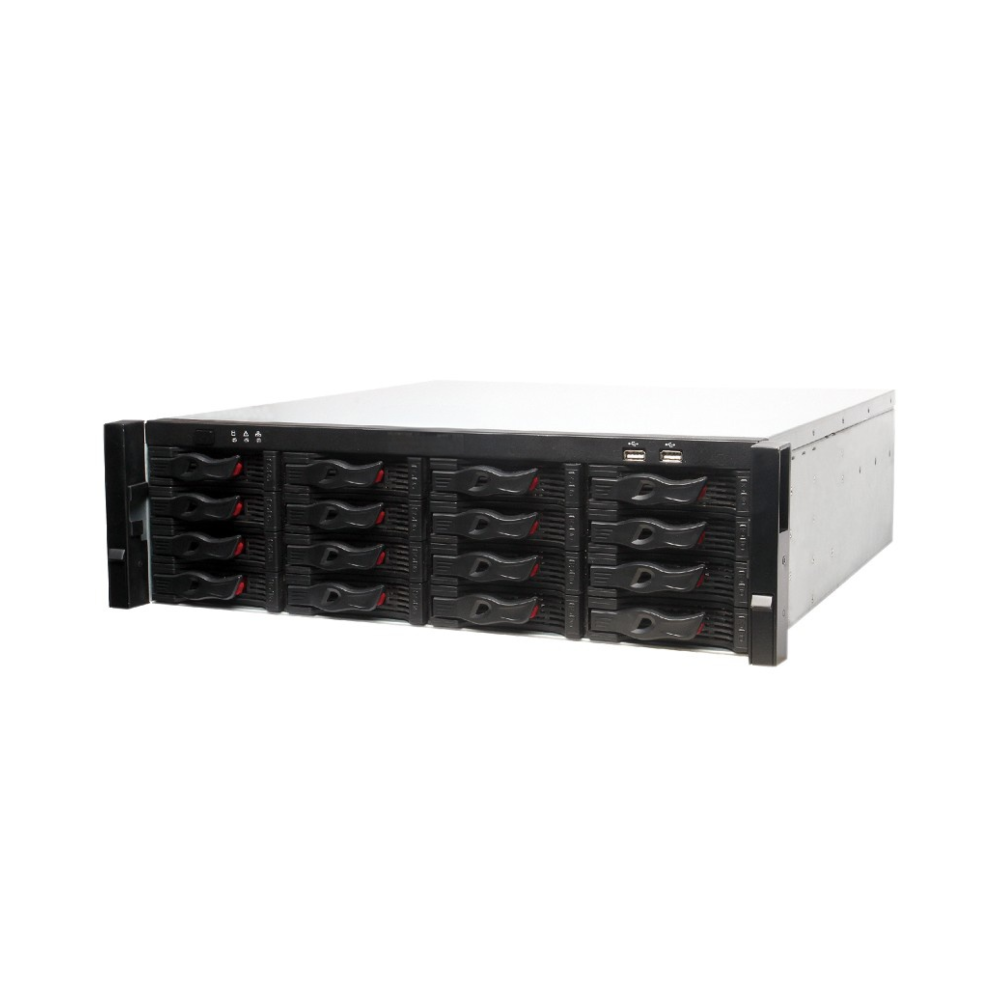

D-Tech DHI-NVR616-128-4KS2 Ultra-Series 4K 3U 128-Channel Rackmount Non-PoE NVR – 16x HDD Bays Features :- New 4.0 user interface 16-channel decoding @1080p (30 fps); self-adaptive decoding capability Access, storage or forwarding at 384 Mbps Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10 Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behavior analysis N+M cluster. When the host fails, the standby device will continue to record; once the host recovers, video recorded on the standby device will be transmitted back Hardware characteristics :- 2 x VGA ports (max. 1080P resolution) 2 x HDMI ports (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI 16 x 3.5″ SATA HDD ports (max. 10TB HDD per port) 1 x eSATA port 1 x SAS port 1 x RS232 port 1 x RS485 port 2 x USB ports (one front, two rear) 4 x LAN ports (10/100/1000Mbps) + 2 x Optical ports (1000Mbps) 16 x Alarm input ports 8 x Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
