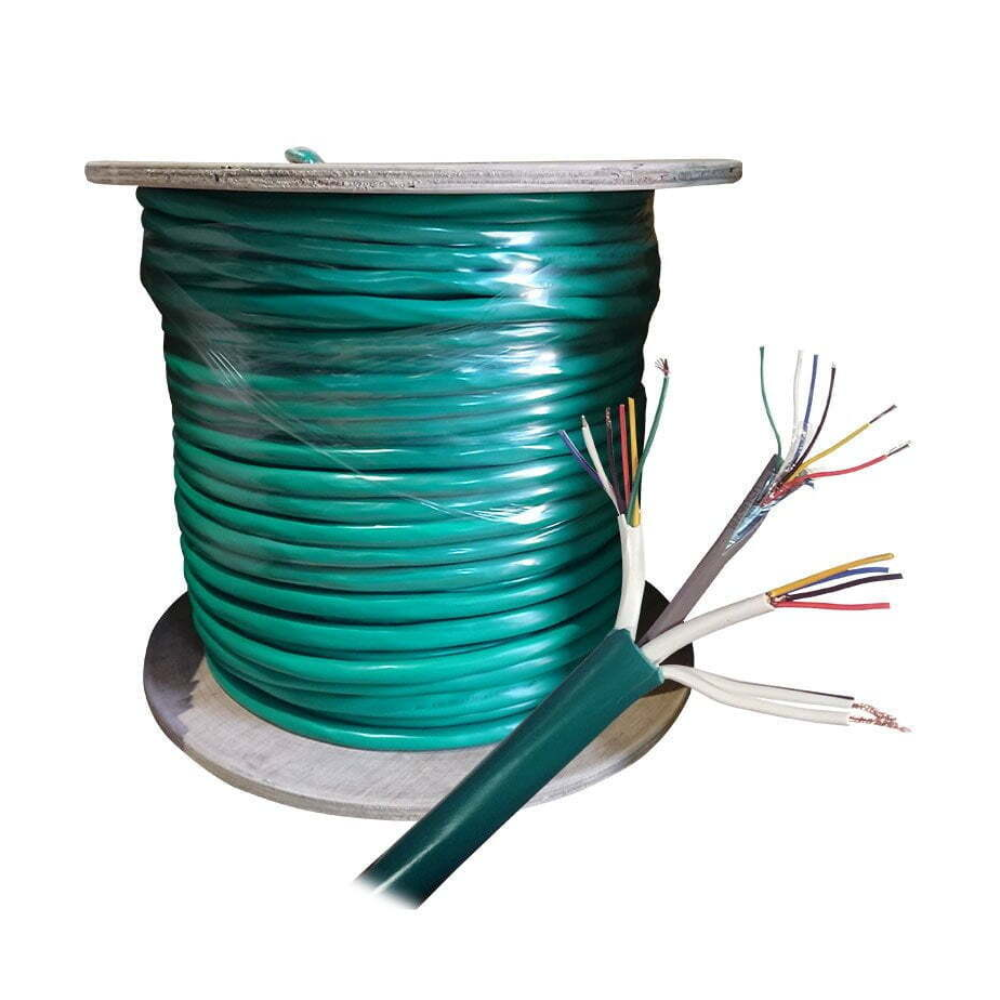

Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable Construction Parameters :- A: 6C Screened Security Cable Conductor: 6C Stranded Tinned Copper Insulation: PVC Shield 1: PET Tape Drain Wire: Stranded Tinned Copper Shield 2: Aluminum Foil Rip-cord: Yes Sheath: PVC Grey B: 4C Unscreened Security Cable Conductor: 4C Stranded Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC White C: 6C Unscreened Security Cable Conductor: 6C Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC D: Twin Speaker Cable with Black Stripe Conductor: 2C Bare Copper Sheath: PVC with Black String Rip-cord: Yes Sheath: PVC Mechanical Properties (20℃): Rate Voltage 300V Rate Temperature -20℃ up to +75℃ Conductor Resistance(DCR@200C) ≤10.0Ω/100m Insulation Resistance(DC) ≧0.010Ω/km Conductor breaking elongation rate ≧15% Insulation tension ≧16MPa Sheath tension before aging ≧10MPa Insulation breaking elongation ≧200% Sheath breaking elongation before aging ≧125% Sheath breaking elongation after aging ≧100%
Huier 60290
Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable
