Overview

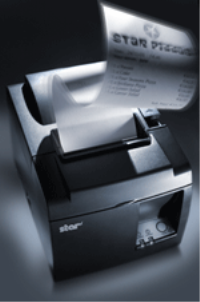

The TSP100 futurePRNT is the first USB only receipt printer on the market today. The power that USB communication interface provides has allowed Star Micronics to build a software driven POS receipt printer that is voucher printing ready – out of the box!. The advantages of such a printer are evident for application like retail, restaurants, and convenient stores. It provides an immediate Plug&Play installation which reduces the time of integration to minutes.
This thermal printer is provided with all standard operating systems drivers (Windows, Linux and Mac) and specialty drivers like the OPOS and JavaPOS. Also, included in the drivers, Star has included simple utilities that will enhance the Retail or hospitality applications and therefore make the entire experience a charm.
12 Months Warranty
Specifications
| Printer Method | Direct Line Thermal | |
| Print Speed | 22 Receipts Per Minute (125 mm/sec) | |
| Printer Case Color | Charcoal Grey | |
| Models Available | Auto Cutter | |
| Print Resolution | 203 dpi (8 dots per mm) | |
| Two Colour Print Capability | Red & Black / Blue & Black / Green & Black (Two colour thermal paper required) | |
| No. of Columns | Star Mode = 40, ESC/POS™ Font A 42 Font B 64 | |
| Font Size | 12 x 24 | |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese | |
| International Code Pages | Star Mode=40. ESC/POS™= 10 + 1 blank allowing an additional character page to be added | |
| Bar Codes | Extended barcode functionality – 9 versions / PDF 417, Maxicode Option | |
| Line Spacing | 3 mm or 4 mm or programmable | |
| Paper Specifications | ||
| Width | 80mm standard, 58mm with paper guide | |
| Thickness | 0.065 ~ 0.085 mm | |
| Roll Diameter | Up to 83 mm | |
| Easy-Load | “Drop-In & Print” | |
| Paper Out Sensor | Standard | |
| Paper Low Sensor | N/A | |
| Maximum Print Width | 80mm paper = 72mm, 58mm paper = 50.8mm | |
| Top Margin | 11 mm minimum default | |
| Auto Cutter | Guillotine (Partial Cut Only) | |
| Cover Open Sensor | Yes | |
| Logo Store Capacity | Unlimited | |
| Multiple Copy Support | Supported through futurePRNT Software | |
| Journal Capability | Supported through futurePRNT Software | |
| Label Support | N/A | |
| Power Supply | Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable) | |
| Drivers Available | Windows™ 2000/XP/Vista™, WinCE, XP Embedded (TSP100U/TSP100PUSB Only), Windows 2003 Server, OPOS™, JAVA POS™, Linux CUPS Support™ , MAC OSX™, Windows 98/ME/NT4 (TSP100U/TSP100PUSB Only) | |
| WHQL | Certified | |
| Swappable Interfaces | N/A | |
| Emulation Modes | Star Mode, ESC/POS™ | |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 Compulsion input | |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby | |
| Operating Conditions | Temperature: 5ºC to 45ºC | |
| Humidity: 10% – 90% RH (without condensation) | ||
| Storage Conditions | Temperature: -20ºC to 60ºC | |
| Humidity: 10% – 90% RH | ||
| Dimensions | 142mm(W) x 204(D) x 132(H) mm | |
| Weight: | ||
| Auto Cutter Models | TSP143U – 1.73Kg, TSP143PUSB – 1.53Kg, TSP143LAN 1.72Kg | |
| Safety Standards | UL, C-UL, TüV, FCC, VCCI, EN55022, CE | |
| Reliability MCBF | 60 Million Lines | |
| Print Head | 100km | |
| Auto Cutter | 1 Million Cuts | |
| Accessories ALL Included with Printer | Installation CD with Drivers and futurePRNT Receipt ReDesign Software, Wall Mount Bracket, Auto Reverse Text Output Software, Vertical Mount Accessory, 58mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover | |
| (Power Cable not included with PUSB versions) | ||
| Options | Splash Proof Cover (SPC-T100) | |
| Display Stand for Vertical Use (VS-T650) | ||
| Kitchen Buzzer (BU01-24-A) | ||
